ETABS to spColumn Plugin (Product is discontinued)
With Batch Designer for RC Columns and Shear Walls
Description of Plug-in
This plugin extracts the geometrical properties, material properties and factored loads of selected columns, braces and walls in ETABS and transfers to spColumn software. This also reads the output from spColumn which is significantly faster than using the graphics user interface (gui) of spColumn. It features batch design of columns/braces and walls with average speed of one column/brace/wall per second.
Detailed features are as follows:
This plugin extracts the geometrical properties, material properties and factored loads of selected columns, braces and walls in ETABS and transfers to spColumn software. This also reads the output from spColumn which is significantly faster than using the graphics user interface (gui) of spColumn. It features batch design of columns/braces and walls with average speed of one column/brace/wall per second.
Detailed features are as follows:

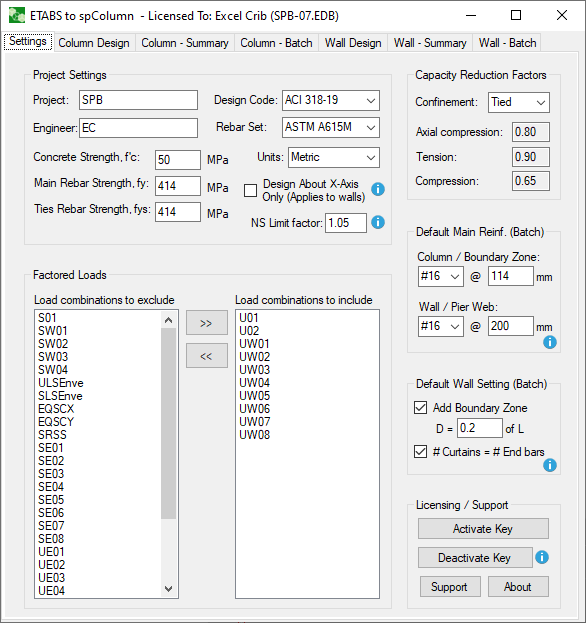

1. Supports ACI and CSA concrete codes (ACI 318-05, ACI 318-08, ACI 318-11, ACI 318-14, ACI 318-19, CSA A2.3-94, CSA A2.3-04, CSA A2.3-14, CSA A2.3-19)
2. Supports METRIC and ENGLISH units for ACI code, and METRIC units for CSA code
3. Supports four rebar sets (ASTM A615, CSA G30.18, prEN 10080, ASTM A615M)
4. Option to design about x-Axis only when designing shear walls
5. Capacity reduction factors or material resistance factors can be predefined depending on confinement type (Tied or Spiral), or user defined.
6. Multiple design load combination selection
7. Auto generation of batch design input data for columns/braces and shear walls
8. Feature to transfer activations to another computer by deactivating the key which can be done anytime by the user

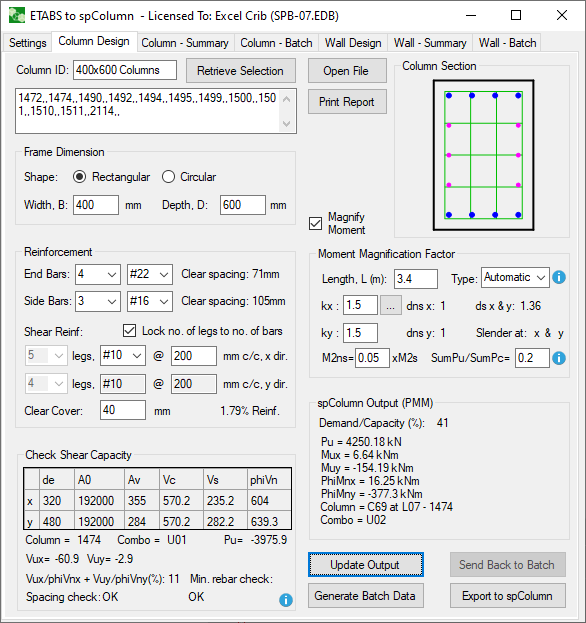

9. Automatically extracts the column shape and dimension from ETABS (circular, rectangular, width, depth, diameter and length) as well as the concrete strength. This can be overwritten within the plugin.
10. Option to magnify moment according to ACI 318 provisions. If CSA code is selected, it will use ACI 318 for moment magnification.
11. User can set to choose the frame type (Automatic, Sway, Non-Sway). We advised to keep it Automatic and set the the NS limit factor from the Settings tab.
12. Printing calculation report which takes the worst case for shear and biaxial bending.
13. The plugin automatically saves cti files (spColumn file); and espc files containing the input data and can be opened by the plugin.

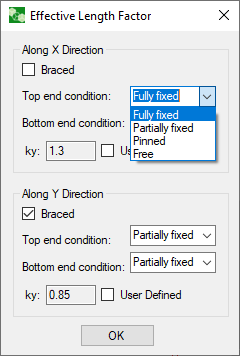

14. A simple k value calculator are available by setting the end conditions.
15. Column design summary are provided showing design check for each combination/station.
16. Printing of design calculation for any combination/station.

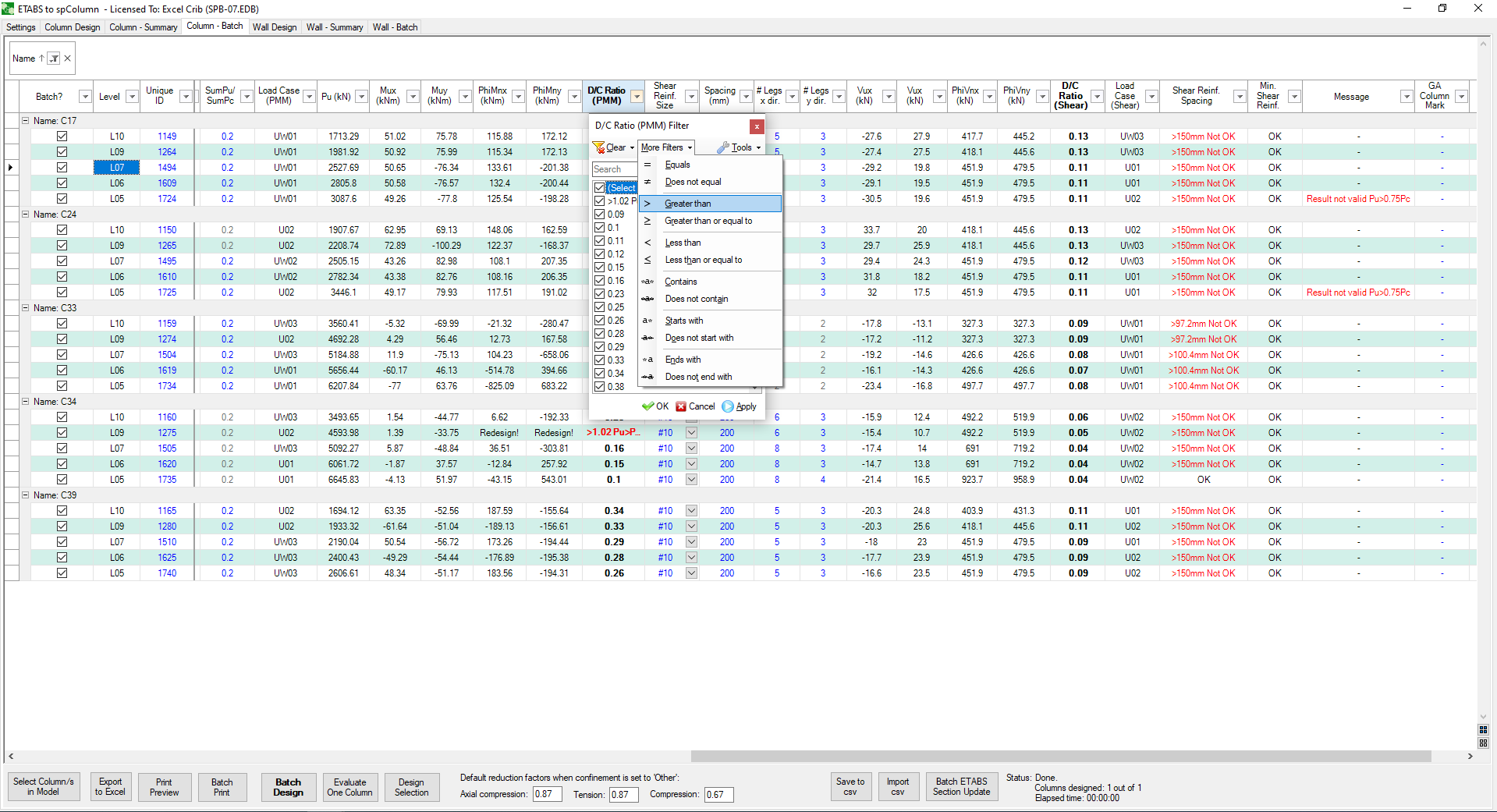

17. The summary table features advanced filtering, grouping and sorting.

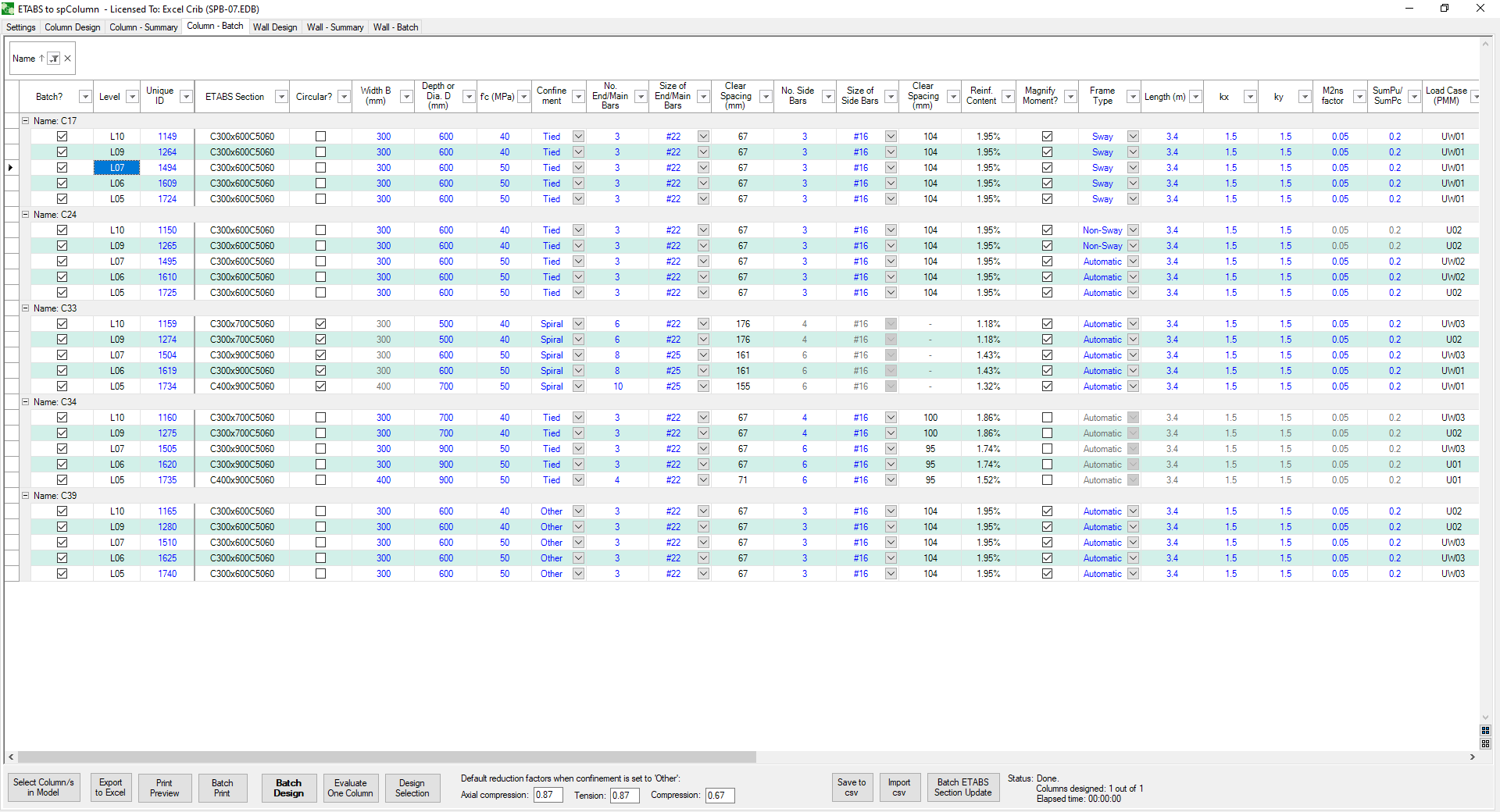

18. Batch design of columns with auto-generation of input data. Features advanced input like check box and drop down selection.
19. Supports copy and paste of data or Ctr+C and Ctr+V
20. Batch printing of design calculation for each column are supported.
21. Design selection from the table are supported.
22. Save data by exporting to csv file and can be imported back to the table.
23. Batch section assignment to ETABS with or without rebar.
24. Advanced filtering, grouping, and sorting of batch design table.
25. Failing columns are shown with red font formatting.
25. Option to modify the stiffness factors and to include rebar during batch section assignment.

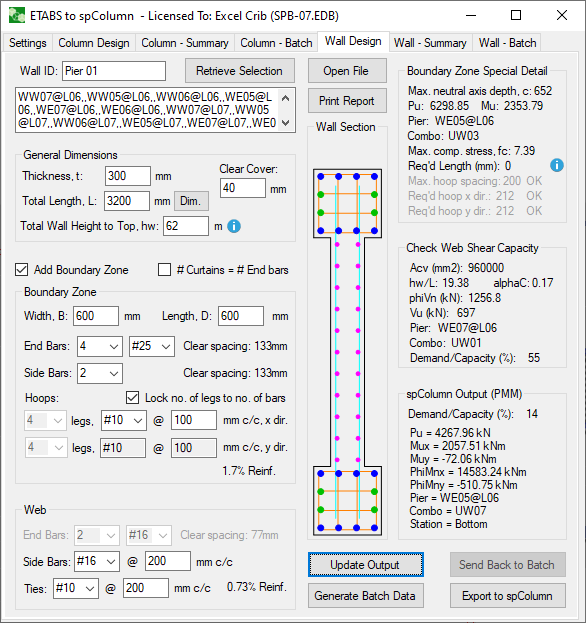

26. Automatically extracts the wall dimension from ETABS (thickness, total length and total height) as well as the concrete strength. This can be overwritten within the plugin.
27. Option to include boundary zone according to ACI 318 provisions. If CSA code is selected, it will use ACI 318 for boundary zone special detailing.
28. When boundary zone is set, the maximum neutral axis depth c are automatically extracted from spColumn. This value is from using the NOMINAL moment strength and the factored axial strength.
29. Printing calculation report which takes the worst case for shear and biaxial/uniaxial bending.
30. The plugin automatically saves cti files (spColumn file); and espw files containing the input data and can be opened by the plugin.

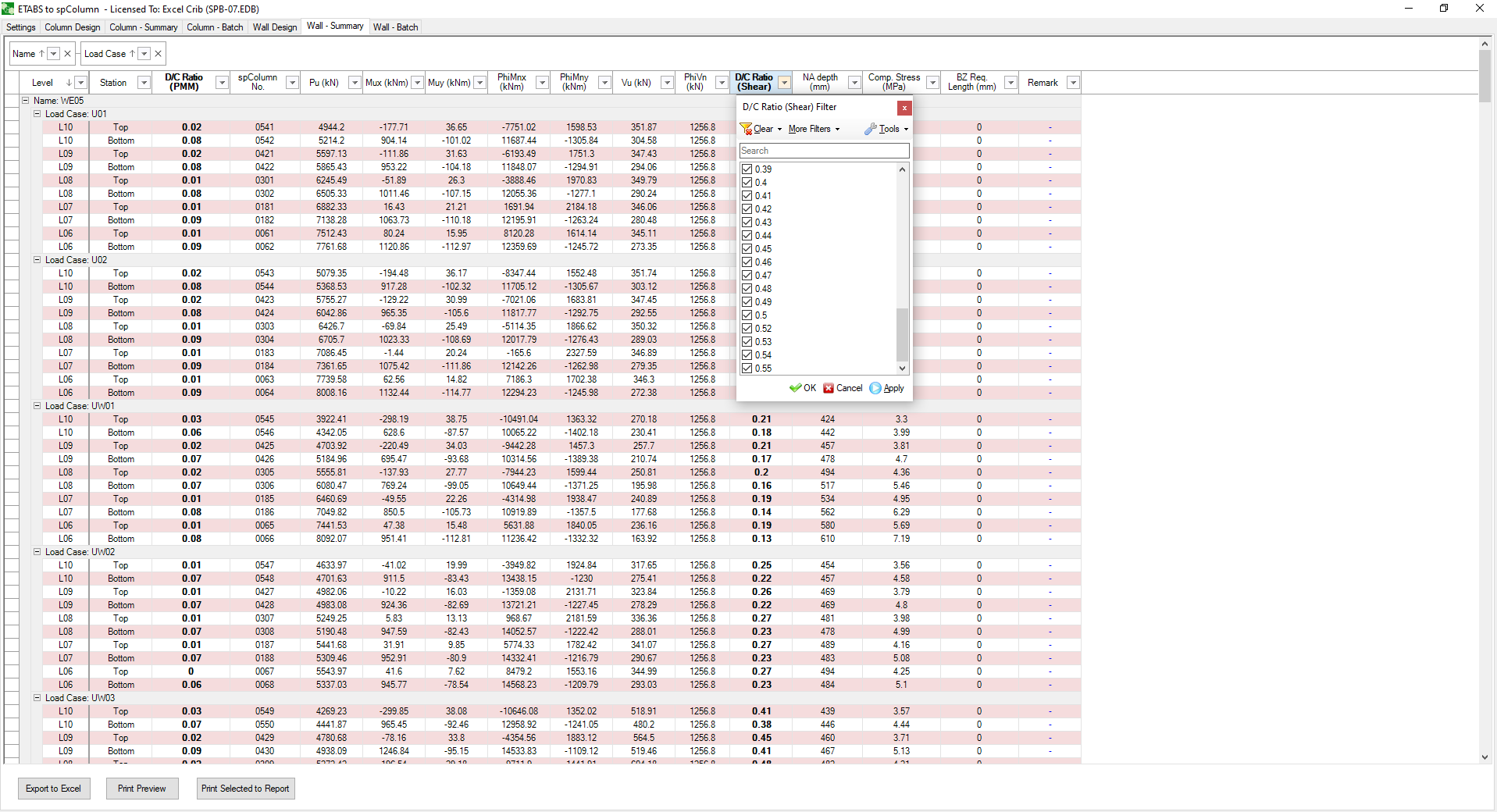

31. Wall design summary are provided showing design check for each combination/station.
32. Printing of design calculation for any combination/station.
33. The summary table features advanced filtering, grouping and sorting.

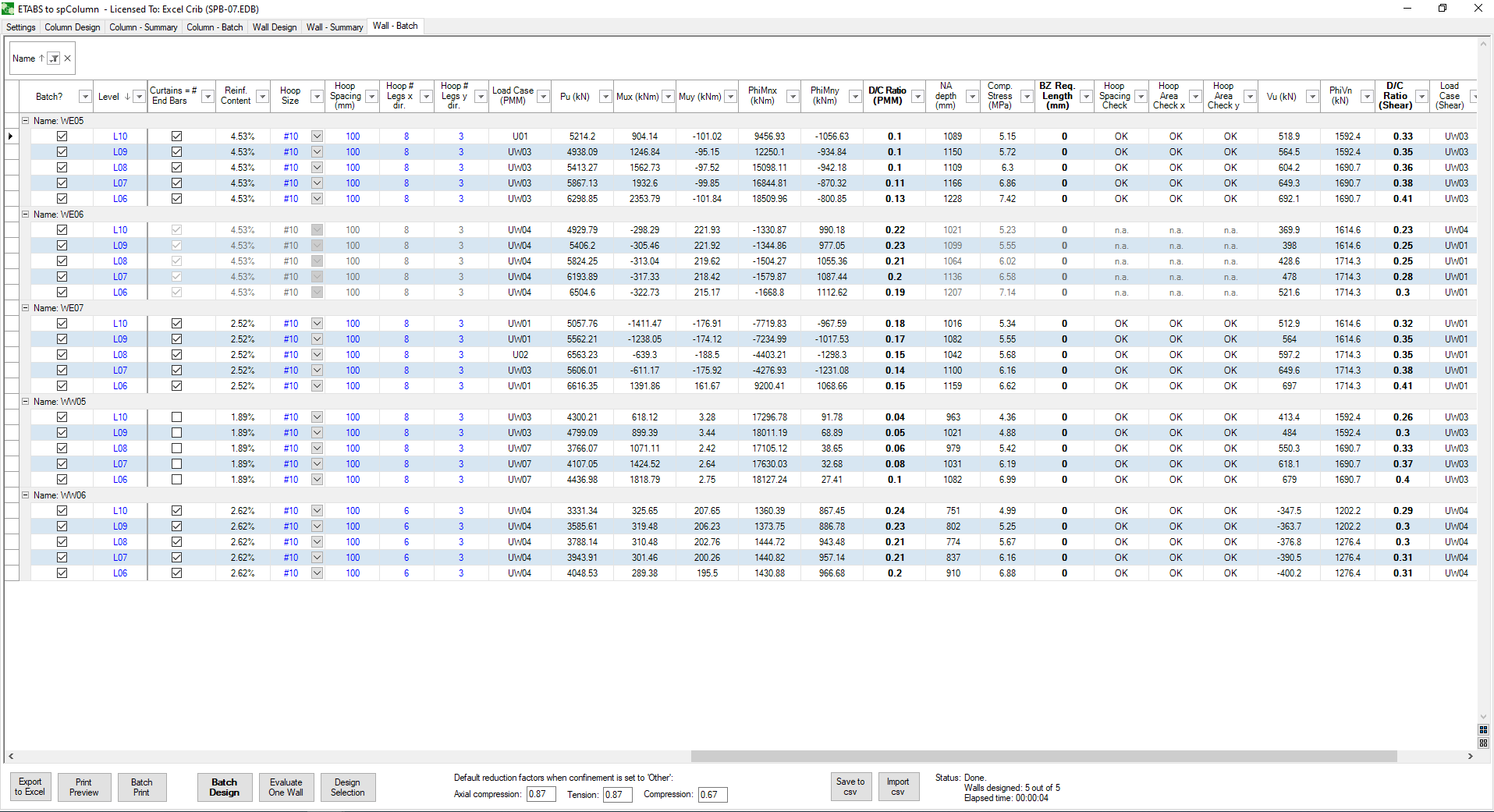

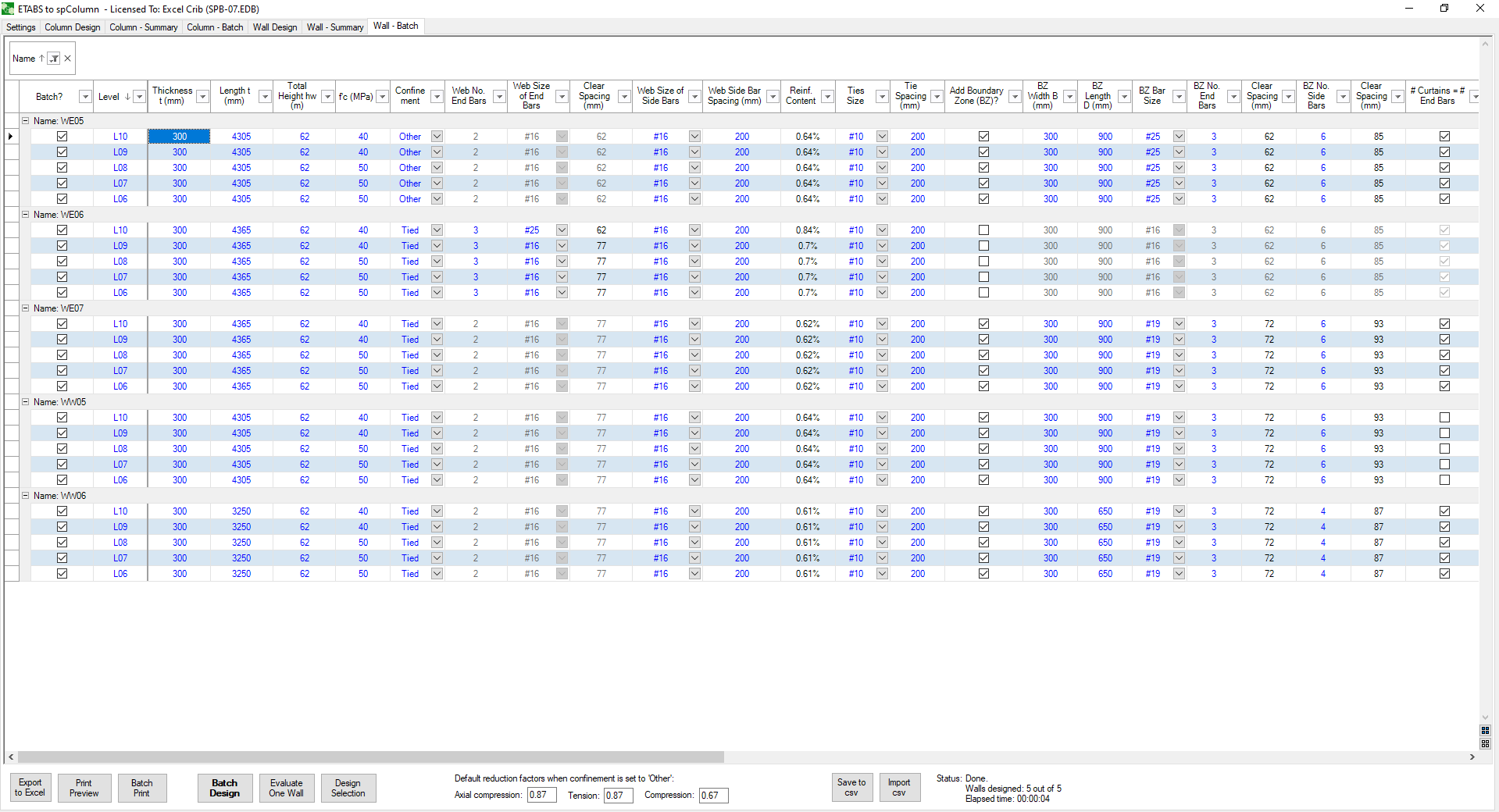

34. Batch design of walls with auto-generation of input data. Features advanced input like check box and drop down selection.
35. Supports copy and paste of data or Ctr+C and Ctr+V
36. Batch printing of design calculation for each wall are supported.
37. Design selection from the table are supported.
38. Save data by exporting to csv file and can be imported back to the table.
39. Advanced filtering, grouping, and sorting of batch design table.
40. Failing walls are shown with red font formatting.
Download Calculation Files Produced by the Plug-in Including cti Files
Design of 307 columns accdg to ACI 318 - English Units (zipped file, 4.36 MB)
Design of 307 columns accdg to ACI 318 - Metric Units (zipped file, 3.97 MB)
Design of 307 columns accdg to CSA with moment magnification (zipped file, 4.07 MB)
Design of 307 columns accdg to CSA without moment magnification (zipped file, 3.54 MB)
Design of 278 walls accdg to ACI 318 - English Units (zipped file, 2.05 MB)
Design of 278 walls accdg to ACI 318 - Metric Units (zipped file, 1.91 MB)
Design of 278 walls accdg to CSA (zipped file, 1.99 MB)
Requires ETABS 2016/17/18/19 and spColumn v6.0 & above. Internet connection is required only during activation and deactivation of license keys.
Release Notes:
20200812 - Version 3.0.0.0 - Major update. Added features: (1) English units for ACI code, (2) Moment magnification according to ACI 318-19, (3) Column shear design according to ACI 318-19 and CSA A23.3-19, (4) Column batch design, (5) Printing of design calculations, (6) Shear wall design, (7) Batch shear wall design, (7) License is now transferrable
20200527 - Version 2.0.0.0 - spColumn output are now displayed within the plugin. Moment magnification factor has added. Additional eccentricity has been removed. Support for ACI 318-19 and CSA A23.3-19 has been added (applies only for spColumn 7.0). Revised output file from .col to .cti.
20200514 - Version 1.4.1.0 - Implemented one license for all versions of ETABS
20200303 - Version 1.4.0.0 - Migration of license service
20200217 - Version 1.3.0.0 - Compatibility with spColumn version 6.0 has been implemented.
20191209 - Version 1.2.0.0 - Option to add eccentricity was implemented. New licensing system and options. Added menu bar.
20191005 - Version 1.0.0.0 - Minor bugs fixed
20190328 - Version 0.1.0.0 - Initial release
We guarantee that our software/plugin is virus-free, trojan-free, does not obtain user data and does not upload user information. If you have encountered a warning from the Antivirus software, we recommend you to send the file to your Antivirus software provider for malware analysis. They should be able to confirm that the detection is incorrect and issue an update to clear the detection.
ONE LICENSE WILL WORK FOR ALL VERSIONS OF ETABS. License key is transferrable and can be initiated by the user.
Instant license delivery.
Instant license delivery.
Column Design Module Only
✓ Column Design
✓ Column Design Summary
✓ Batch Column Design
✕ Wall Design
✕ Wall Design Summary
✕ Batch Wall Design
✓ Column Design
✓ Column Design Summary
✓ Batch Column Design
✕ Wall Design
✕ Wall Design Summary
✕ Batch Wall Design
$199 $319
Wall Design Module Only
✕ Column Design
✕ Column Design Summary
✕ Batch Column Design
✓ Wall Design
✓ Wall Design Summary
✓ Batch Wall Design
✕ Column Design
✕ Column Design Summary
✕ Batch Column Design
✓ Wall Design
✓ Wall Design Summary
✓ Batch Wall Design
$199 $319
All Design Modules
✓ Column Design
✓ Column Design Summary
✓ Batch Column Design
✓ Wall Design
✓ Wall Design Summary
✓ Batch Wall Design
✓ Column Design
✓ Column Design Summary
✓ Batch Column Design
✓ Wall Design
✓ Wall Design Summary
✓ Batch Wall Design
$399 $595
*License is transferrable to other PC at no additional cost. License key is valid for one year.
See Licensing FAQ for more information.
See how it works from the following video.
See Licensing FAQ for more information.
See how it works from the following video.
