ETABS Column Design Companion

ETABS Column Design Companion



Description of Plug-in
Retrieves the maximum axial load of each column in tabular format and colour coded grouping. It can also export the forces to AutoCAD and Excel for documentation and further post-processing. The plugin supports the following features:
Stacks Image 350

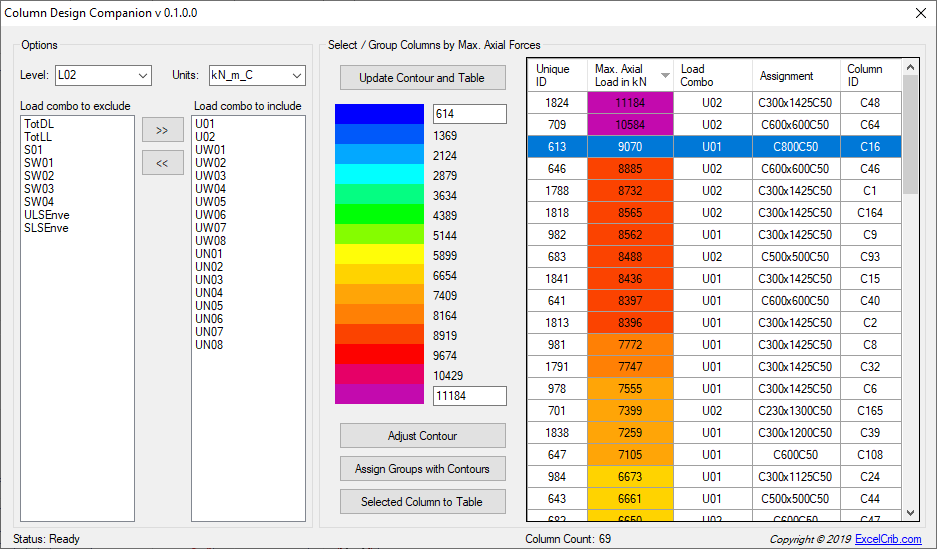

1. Supports multiple combination selection and get the maximum axial force. Table can be sorted by axial force, column assignment, column ID and governing load combinations.
Stacks Image 316


2. Group columns with color contour to show the range of axial force.
Stacks Image 326


3. Select column/s from the table in the model.
4. Exports table to Microsoft Excel.
5. Exports forces and other information to AutoCAD.
Stacks Image 338

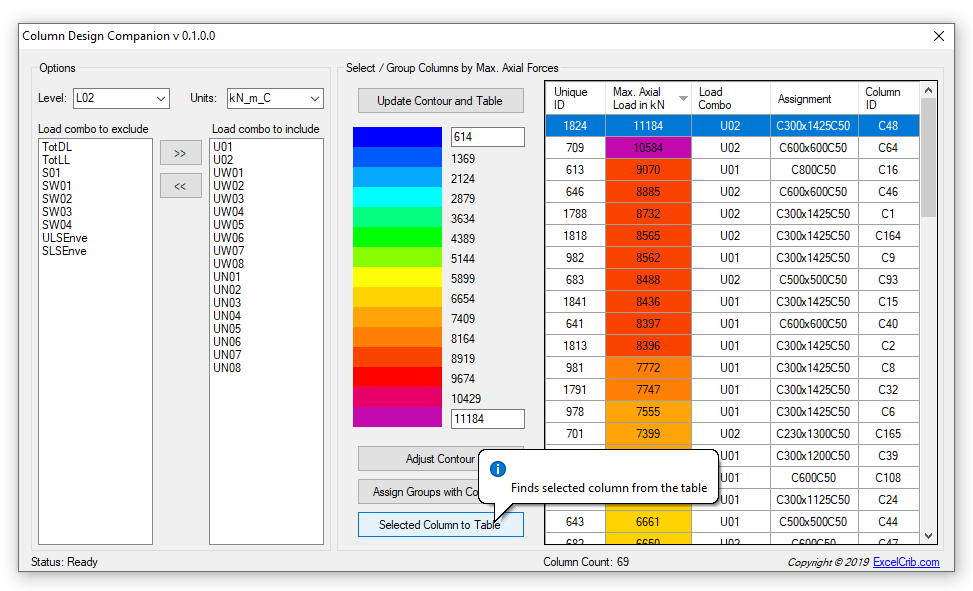

6. Finds selected column in the model from the table.
Stacks Image 340

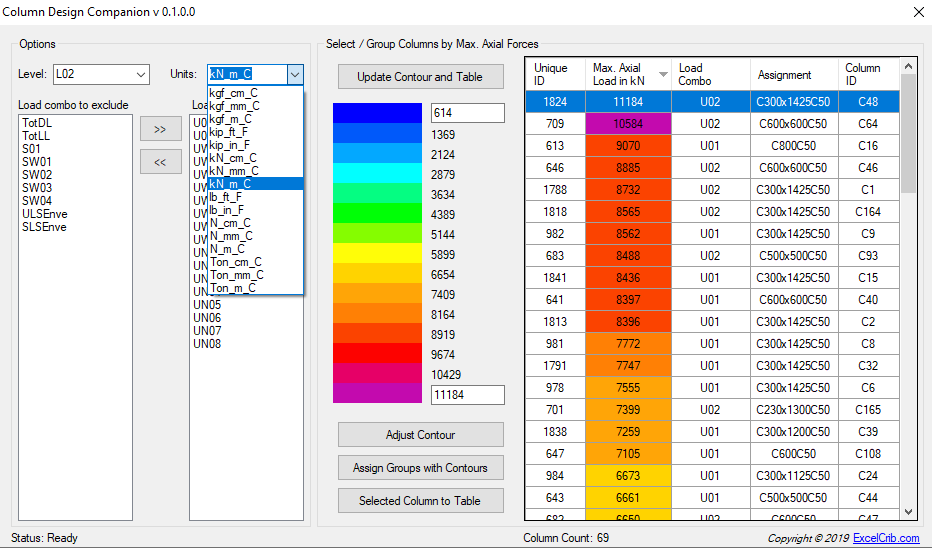

7. Supports all units.
Stacks Image 342

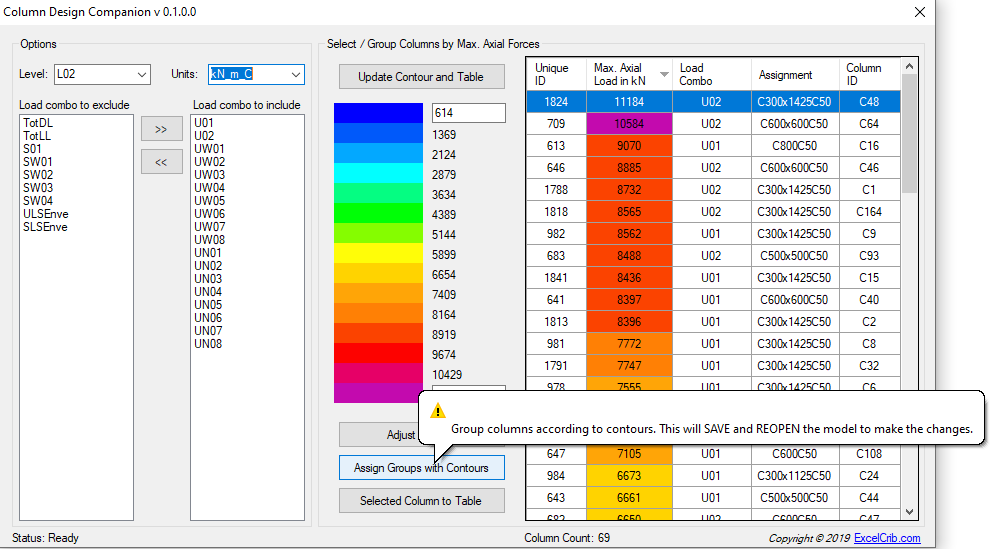

8. Assign groups to columns with colours.
Stacks Image 344


9. Exporting to AutoCAD with formatted text and colour contours.
Stacks Image 346


Requires ETABS 2016 or higher and internet connection to initialise the plug-in.




See how it works from the following video.


You might want to learn how to install ETABS plug-in.
