Single Pile Cap Design

Single Pile Cap Design



Description of Spreadsheet

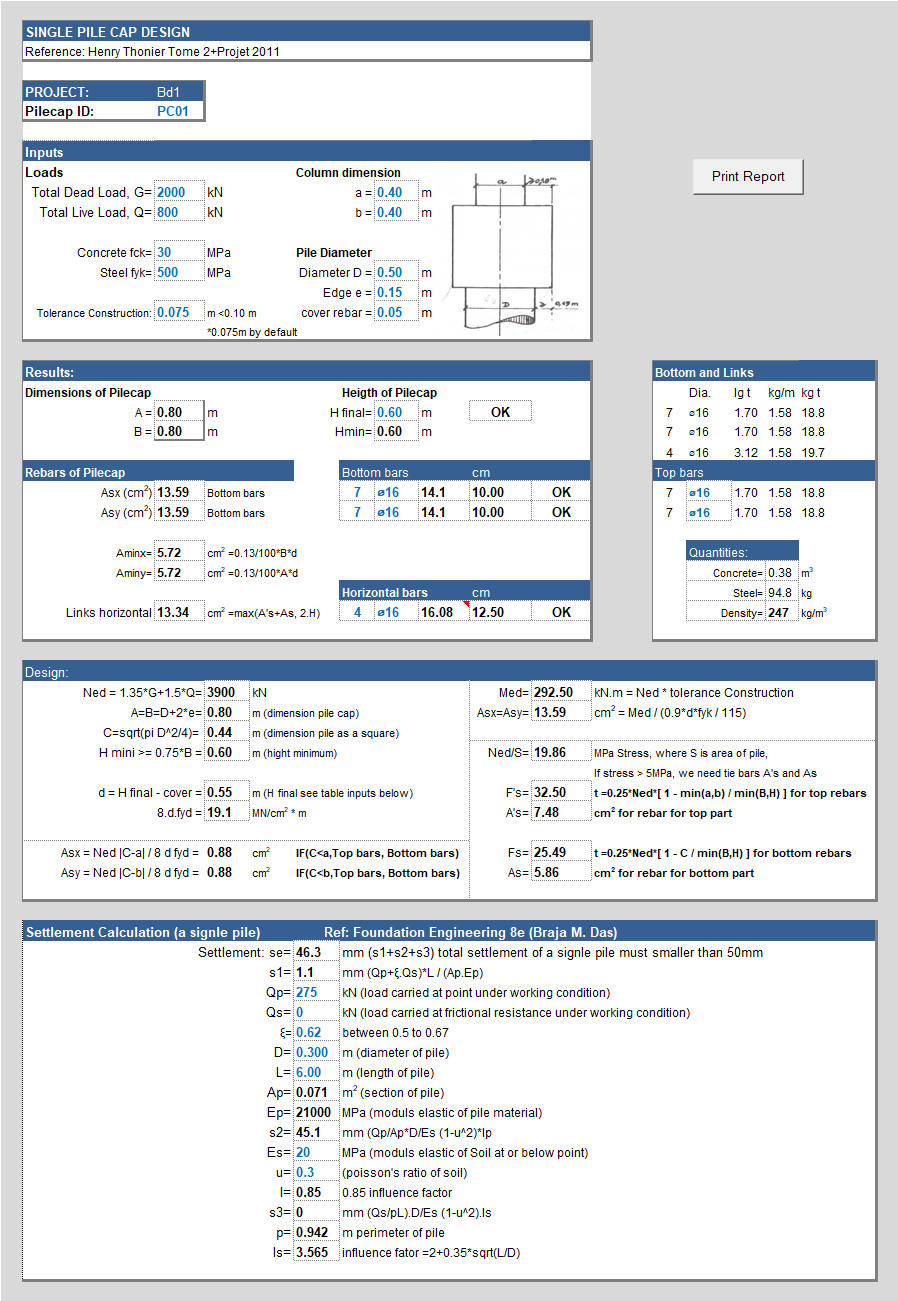

Design of pile cap on a single pile with or without eccentricity following the concrete design to Eurocode. The approach is according to the book by Henry Thonier entitled "CONCEPTION ET CALCUL DES STRUCTURES DE BATIMENT - Tome 2". Bending moments are calculated from the eccentricity due to construction, these moments are the basis of reinforcement design. Minimum thickness are also checked according to the recommendation of Thonier's book. It can also estimate the settlement following the book of Braja Das - "Foundation Engineering 8th edition". Inputs are column geometry, pile diameter, loads, material properties, and variables for settlement calculation. Source codes and formulas are unlocked in the spreadsheet.
