Fire Resistance of Columns

Fire Resistance of Concrete Columns



Description of Spreadsheet
Calculates the standard fire resistance of concrete columns in accordance with Eurocode BS EN 1992-1-2. Inputs are in blue texts like shape of column (rectangular or circular), section dimension of column, effective length, concrete grade, reinforcement area and ratio of SLS axial load and capacity. Output is fire resistance R in minutes. Source codes and formulas are all unlocked in the spreadsheet.

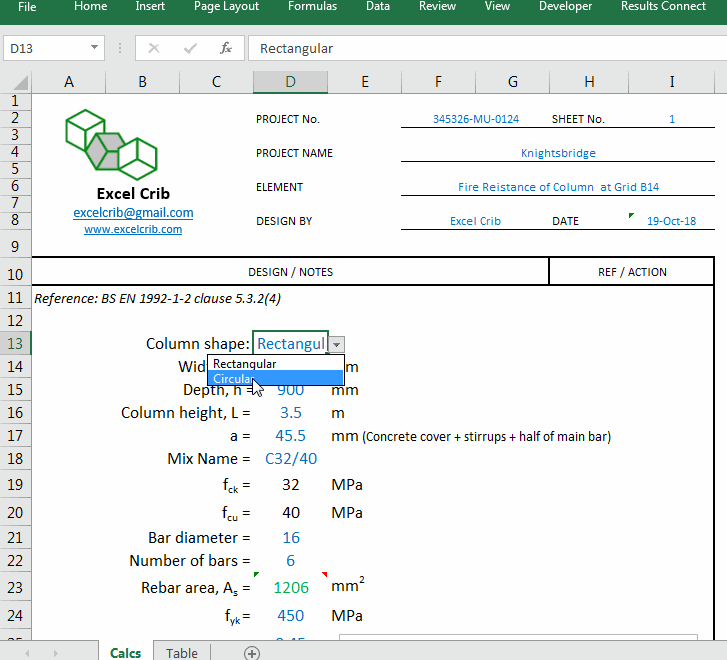

Fire-Resistance-of-Columns

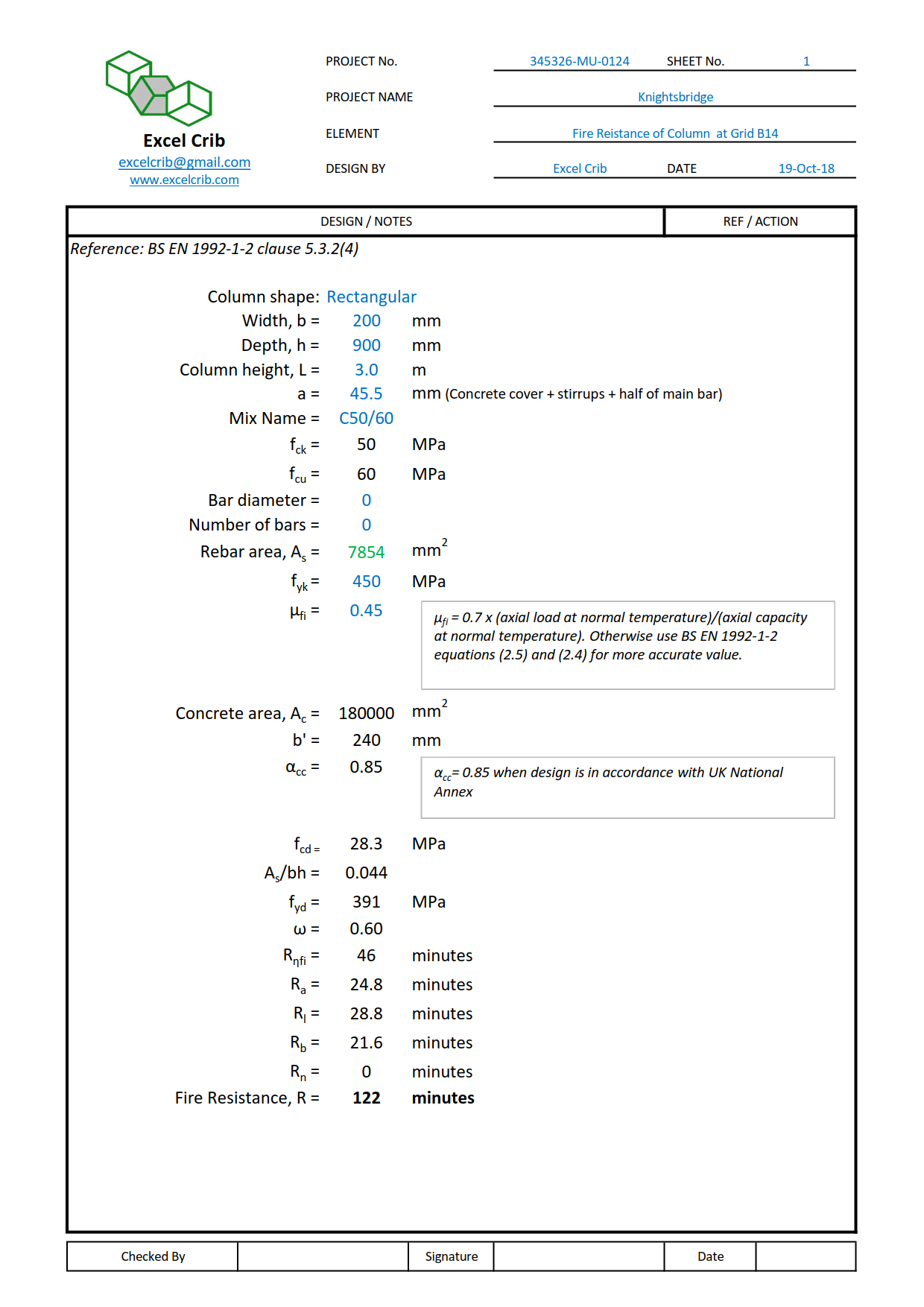

Fire-Rsistance-of-Columns-2


Check out more spreadsheets here.
